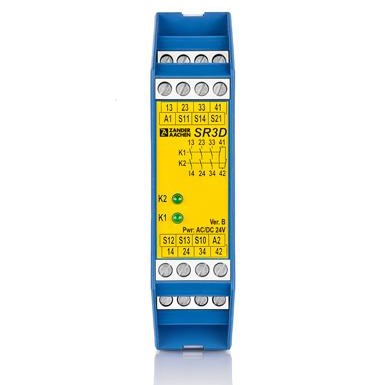

Zander Aachen safety relay SR3D, Emergency stop relay SR3D is a universally applicable safety relay with 3 safety contacts specially designed for continuous use in waste incineration installations on ships, in accordance with EN 50156-1. The safety relay is certified by Germanischer Lloyd under number 32915-06HH and can therefore be used at sea.
Safety relay.
Stop category 0
Performance: e
Safety rating: 3
PL e, SILCL 3, category 4
Control: base unit of the SR series
Contacts: 3 forced safety contacts AC 250V / 6A, 1 auxiliary contact
Working voltage: DC24V, AC230V or AC115V
Case Width: 22.5 mm
Earth leakage protection
Certification according to EN 50156-1 for fire protection.
Germanischer Lloyd Certificate 32915-06HH.
For more information, see the datasheet
