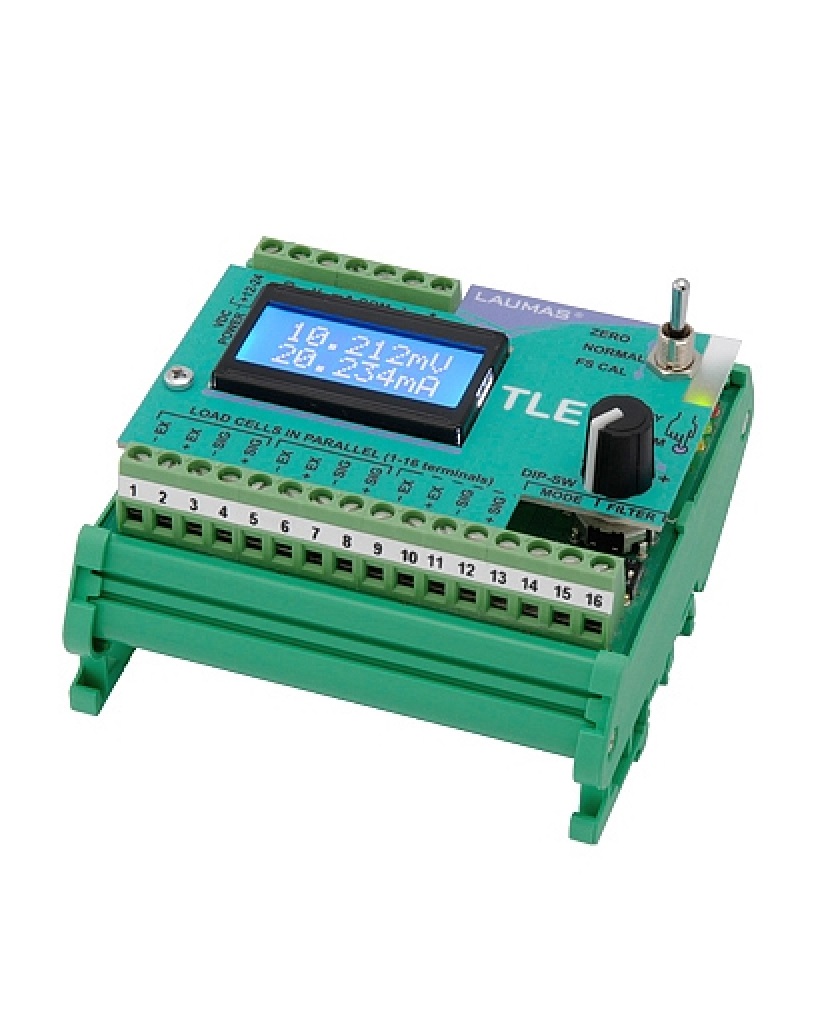

Weight transmitter with backlight LCD display, two-line by eight-digit (5 mm height). Dimensions: 90 x 95 x 60 mm.
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
RS485 port (Modbus RTU)
Simple zero setting and full scale through digital rotary control (Encoder)
Mounting on Omega/DIN rail for back panel or junction box
Box versions: IP67, IP67 ATEX II 3GD
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999
