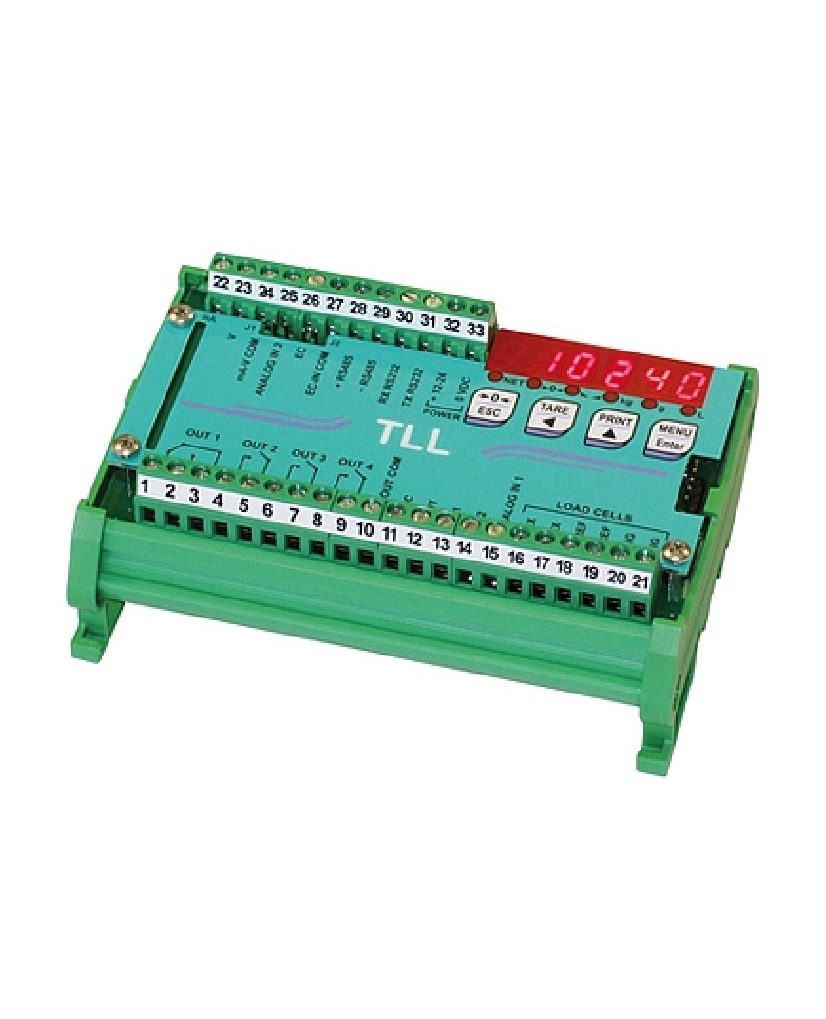

Weight indicator and transmitter with six-digit red LED display (8 mm height). Four-key keypad for the system calibration. Six indicator led. Dimensions: 123 x 92 x 50 mm.
Synchronous weight transmission for PLCs without serial port
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V (optional)
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
2 logic inputs, 4 relay outputs
Mounting on Omega/DIN rail for back panel or junction box
Box versions: IP67, IP67 ATEX II 3GD
A/D converter 24bit (16000000 points) 80 Hz
Display range 999999
