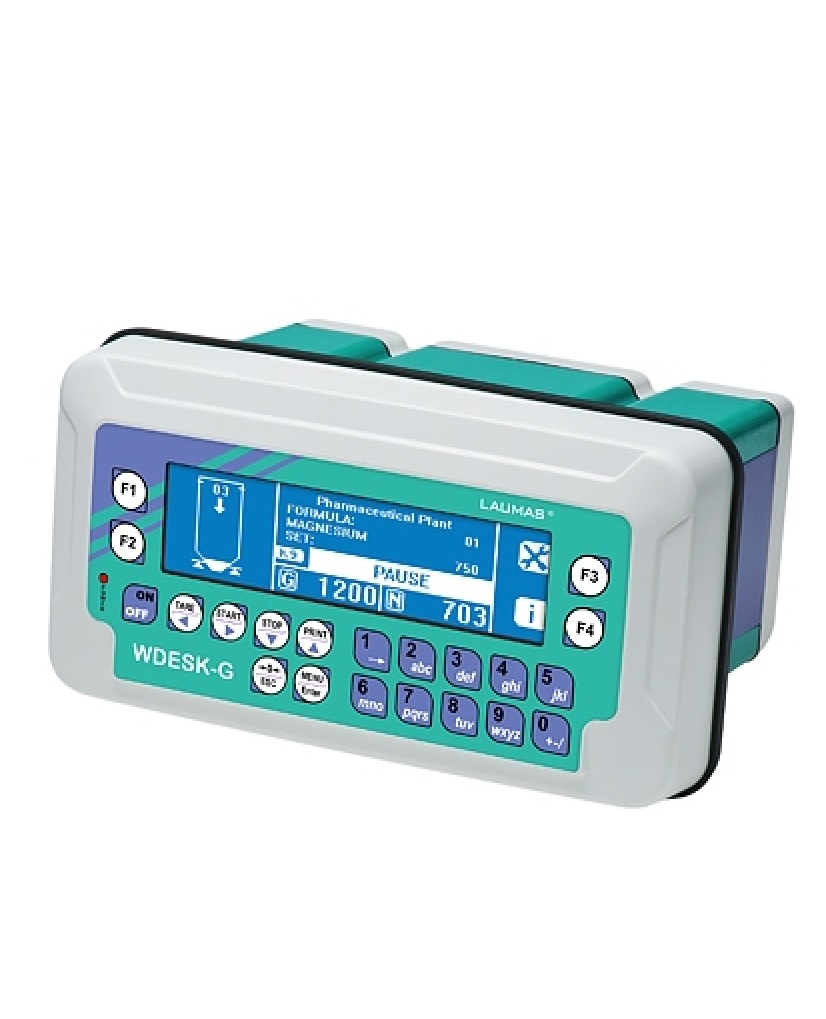

ABS Weight Indicator, dimensions 122 x 226 x 164 mm. IP67 protection rating. 21-key membrane keyboard. Real time clock/calendar.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.
Multilanguage software
Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Backlit LCD graphic display, 133×39 mm, 240×64 pixel
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
