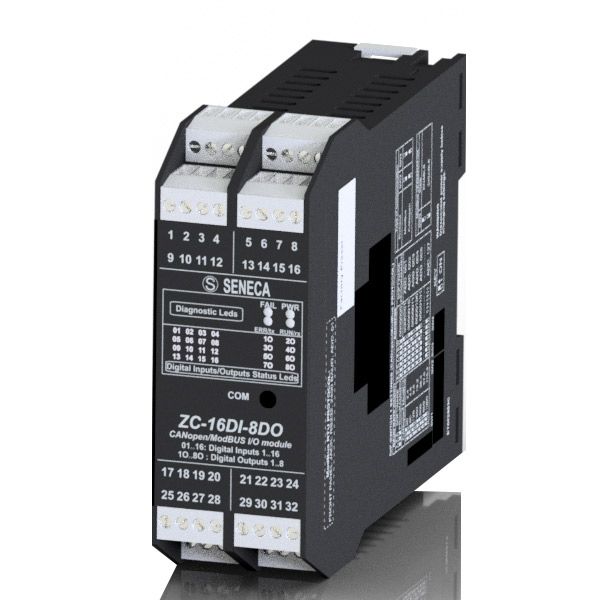

ZC-16DI-8DO, Seneca

ZC-16DI-8DO.
24 digital inputs and 8 digital outputs.
CANopen / MODbus.
10-40VDC, 19-28VAC.
Max power consumption 2.5W.
Insulation: 1.5 kVac.
Response time: 1.2-2.5 ms.
-10 – +65 Degrees Celsius.
Digital inputs: 16 Channels, IEC EN 61131-2, 8 Counters @ 32bit (10KHz max), TPDO <1ms. Digital outputs: 8 channels, 32bit (10KHz max), mosfet, max 500mA per channel Vext 5-30VDC, RPDO <1.25 ms="" li="">
